Pallet Rack Teardrop Style- Welded Frames (Green)

Pallet Rack Teardrop Style- Welded Frames (Green)

Regular price $151.41 USD
Regular price Sale price $151.41 USD
Sale Sold out

Sku:SKU:U0208408

Weight:77.06 lb
Weight:102.66 lb
Weight:122.49 lb
Weight:153.05 lb
In Stock
Description

Description

  • Maximize your storage space with our versatile racking uprights
  • Our Welded Uprights are the most popular, functional racking in the industry. As the best solution for warehouse systems with palletized products, they store a wide variety of goods.
  • Uprights & Beam connect through a piston lock connectors making the system boltless, rigid, and reliable.

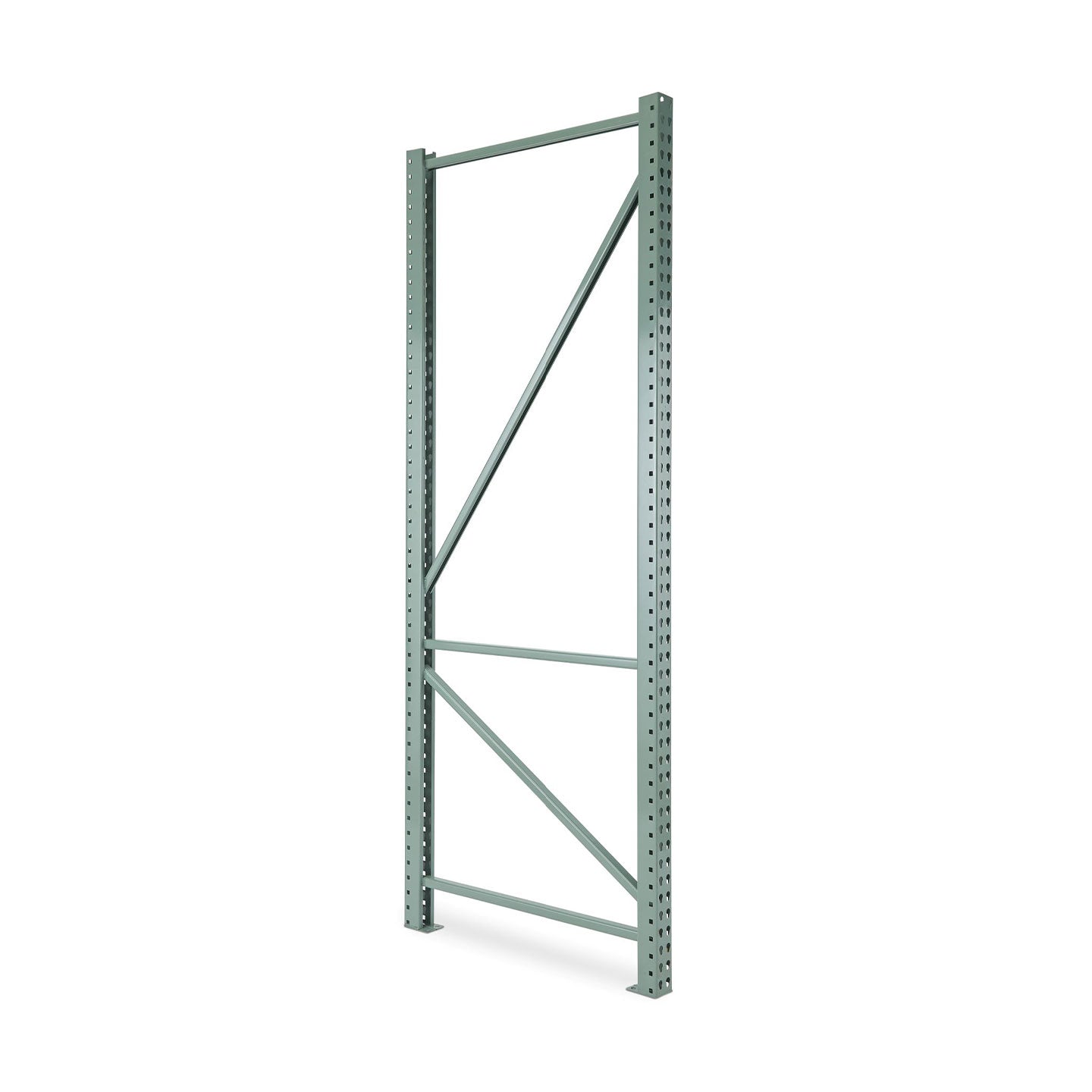

  • Frame Consist of two post, horizontal and diagonal struts and foot plates. Hole punches for beam insertion are placed every 2” centers.

Weights & Dimensions

Size 12' x 42"

  • Upright Height 144"
  • Upright Depth 42"
  • Upright Width 3" x 3" Post
  • Standard Foot Plate 3.3"Lenght x 4.5" Depth
  • Overall Upright Weight 77.06lbs

Size 16' x 42"

  • Upright Height 192"
  • Upright Depth 42"
  • Upright Width 3" x 3" Post
  • Standard Foot Plate 3.3"Lenght x 4.5" Depth
  • Overall Upright Weight 102.66lbs

Size 16' x 42"

  • Upright Height 192"
  • Upright Depth 42"
  • Upright Width 3" x 3" Post
  • Standard Foot Plate 3.3"Lenght x 4.5" Depth
  • Overall Upright Weight 122.49lbs

Size 20' x 42"

  • Upright Height 240"
  • Upright Depth 42"
  • Upright Width 3" x 3" Post
  • Standard Foot Plate 3.3"Lenght x 4.5" Depth
  • Overall Upright Weight 153.05lbs
Specifications
  • Color: Green
  • Style: Teardrop Welded Frame
  • Steel: Made of 14 Gauge Roll-Form Steel
  • Capacity 23,900lbs @ 48" Spacing
  • Color: Green
  • Style: Teardrop Welded Frame
  • Steel: Made of 14 Gauge Roll-Form Steel
  • Capacity 23,900lbs @ 48" Spacing
  • Color: Green
  • Style: Teardrop Welded Frame
  • Steel: Made of 13 Gauge Roll-Form Steel
  • Capacity 28,400lbs @ 48" Spacing
  • Color: Green
  • Style: Teardrop Welded Frame
  • Steel: Made of 13 Gauge Roll-Form Steel
  • Capacity 28,400lbs @ 48" Spacing
