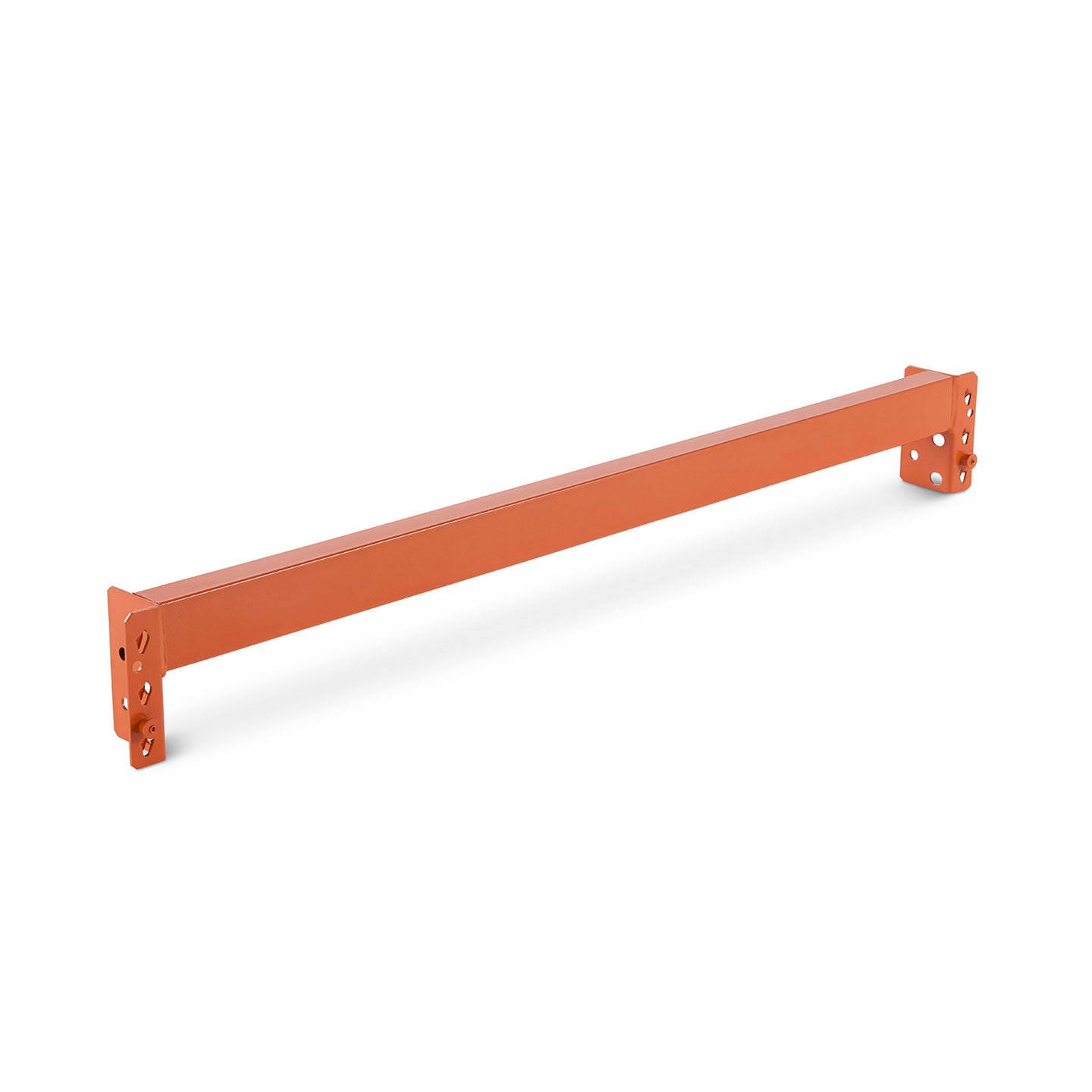

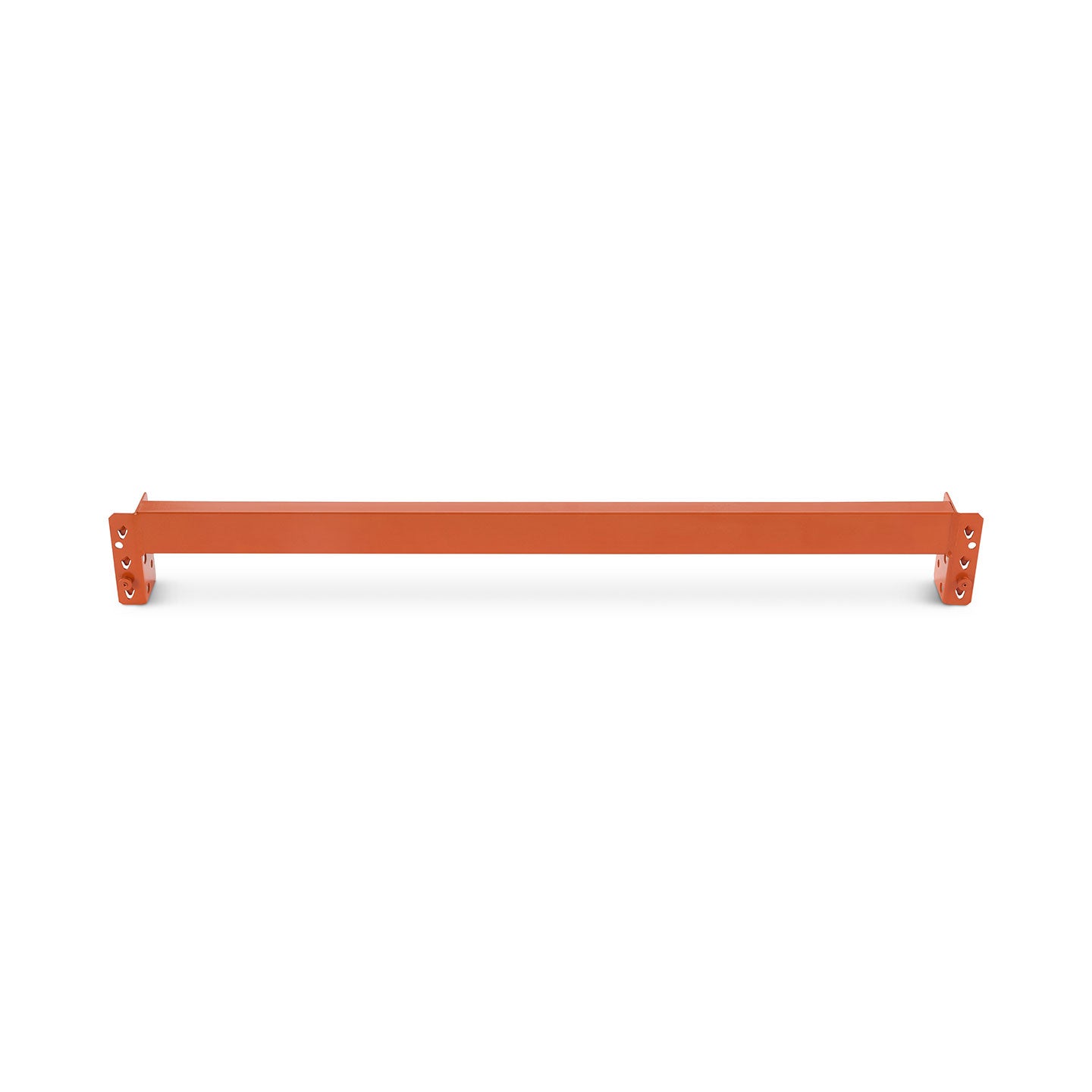

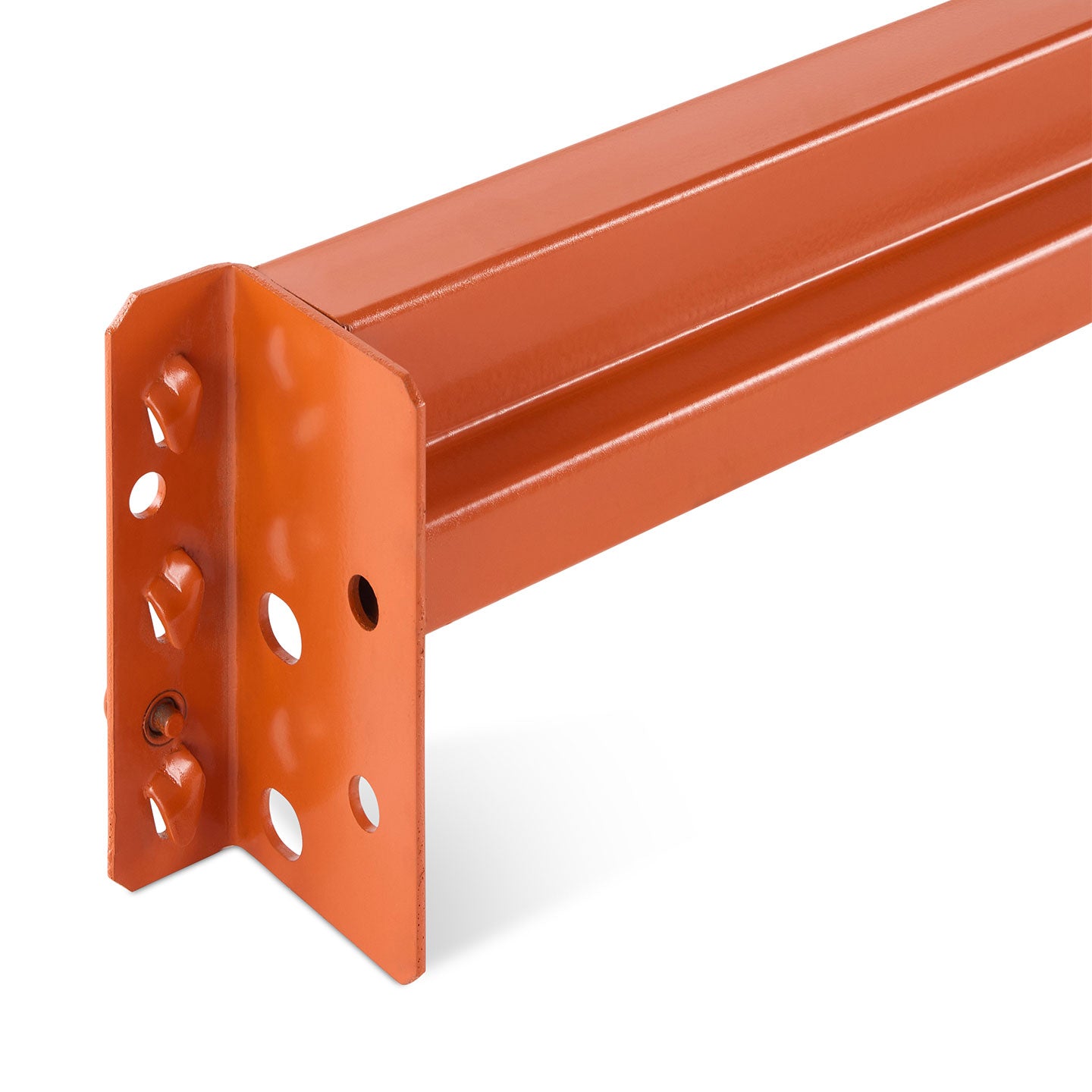

Pallet Rack Step Beams (Orange)

Pallet Rack Step Beams (Orange)

$31.00 USD
$31.00 USD
Sale Sold out
Shipping calculated at checkout.

Sku:U0200310

Weight:10.71 lb
Weight:22.03 lb
Weight:23.86 lb
Weight:25.53 lb
Weight:27.14 lb
Weight:28.34 lb
Weight:30.14 lb
Weight:44.15 lb
Weight:47.4 lb
In Stock
Description

Description

  • Increase your storage levels with our Boltless racking beams that snap into place.
  • Our Roll-Form beams are the most popular functional racking in the industry. As the best solution for warehouse systems with palletized products, they store a wide variety of goods.

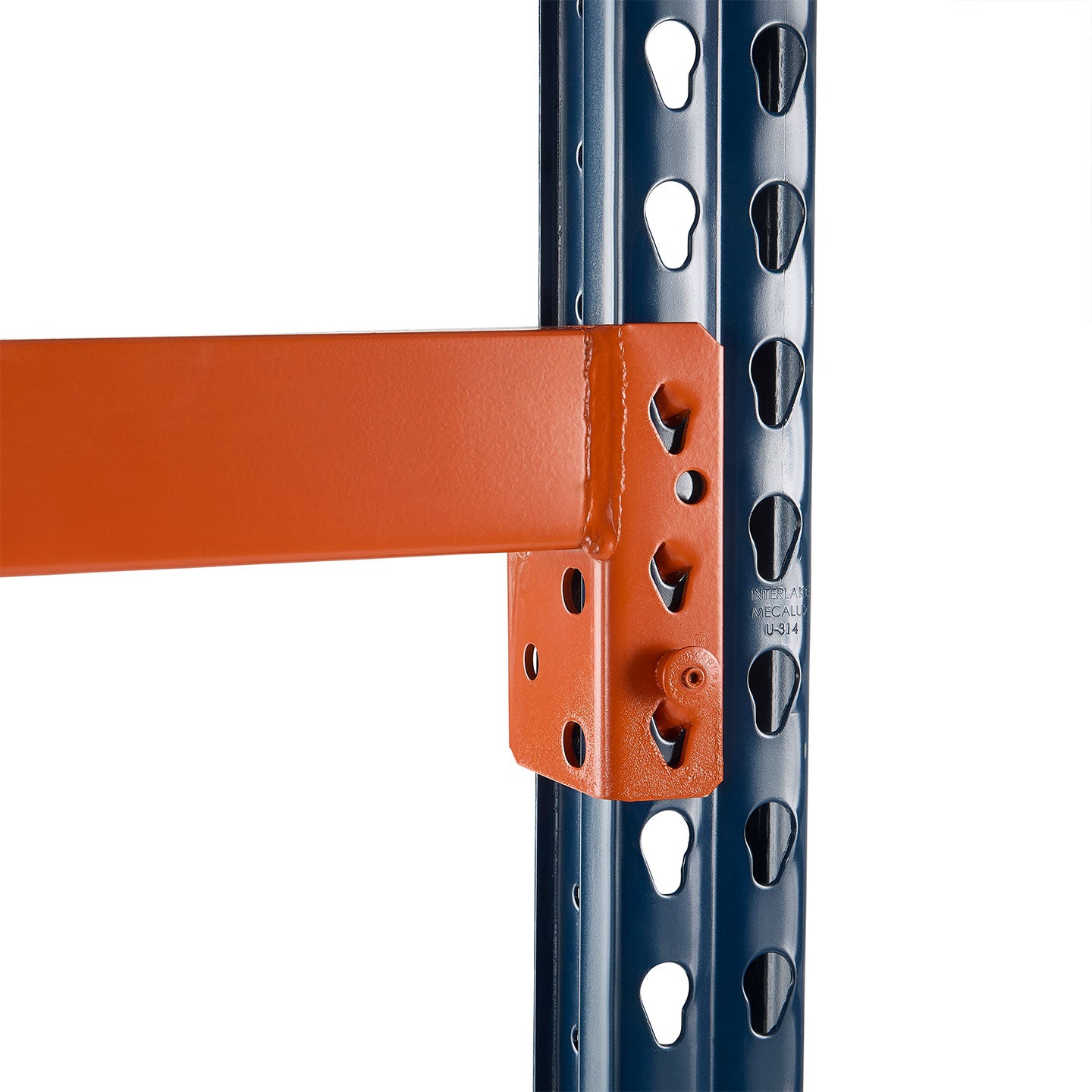

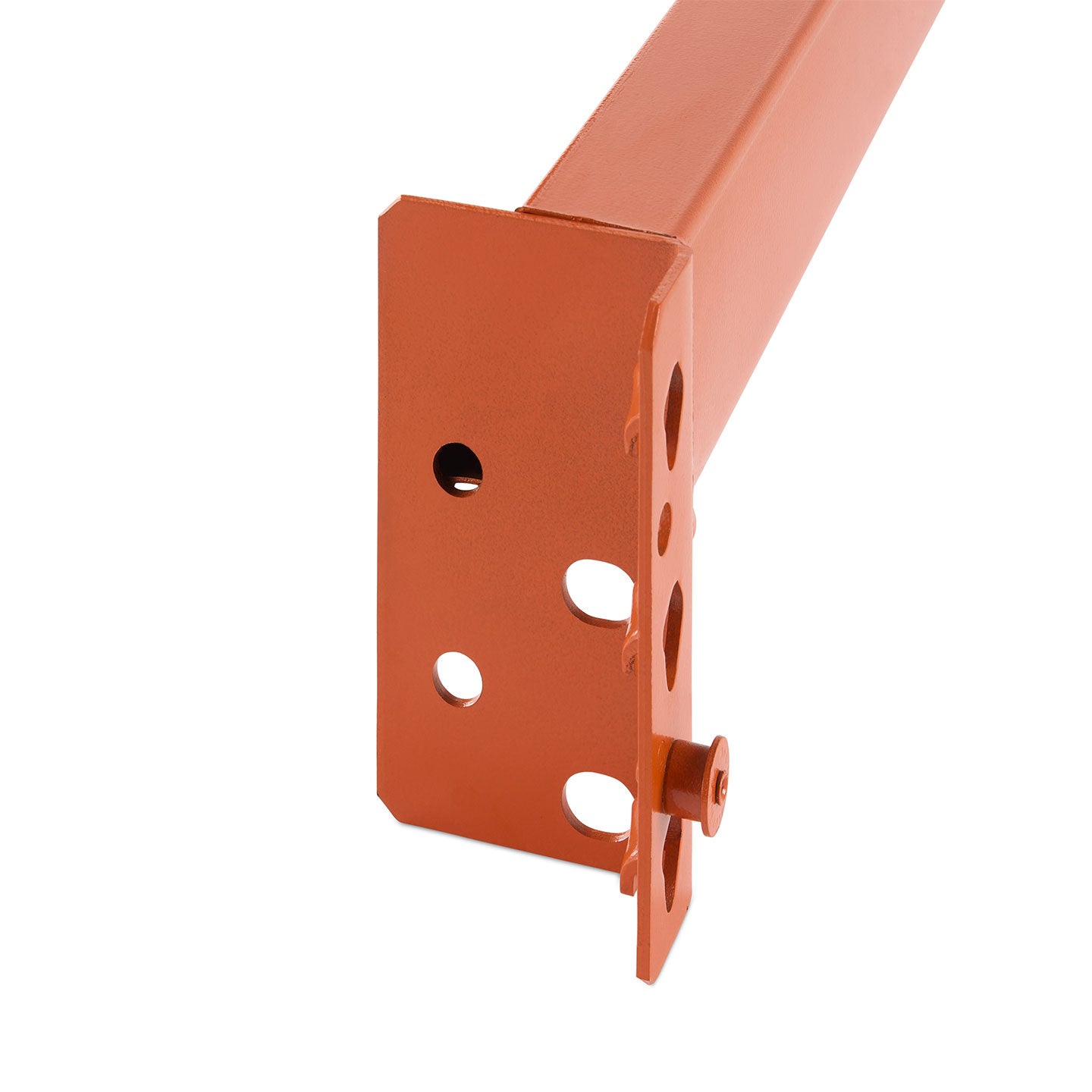

  • Beams connect through piston lock connectors making the system boltless, rigid, and reliable.

  • Locks are located on both ends of the beam

  • Available in different sizes and capacities.

Weights & Dimensions

Size: 48" x 2-3/4"

  • Beam Height 2-3/4"
  • Beam Depth 2-3/4"
  • Beam Width 48"
  • Overall Beam Weight 10.71lbs

Size: 96" x 3-21/32"

  • Beam Height 3-21/32"
  • Beam Depth 2-3/4"
  • Beam Width 96"
  • Overall Beam Weight 22.03lbs

Size: 96" x 4"

  • Beam Height 4"
  • Beam Depth 2-3/4"
  • Beam Width 96"
  • Overall Beam Weight 23.86lbs

Size: 96" x 4-1/2"

  • Beam Height 4-1/2"
  • Beam Depth 2-3/4"
  • Beam Width 96"
  • Overall Beam Weight 25.53lbs

Size: 96" x 5"

  • Beam Height 5"
  • Beam Depth 2-3/4"
  • Beam Width 96"
  • Overall Beam Weight 27.14lbs

Size: 108" x 4-1/2"

  • Beam Height 4-1/2"
  • Beam Depth 2-3/4"
  • Beam Width 108"
  • Overall Beam Weight 28.34lbs

Size: 108" x 5"

  • Beam Height 5"
  • Beam Depth 2-3/4"
  • Beam Width 108"
  • Overall Beam Weight 30.14lbs

Size: 144" x 5-15/16"

  • Beam Height 5-15/16"
  • Beam Depth 2-3/4"
  • Beam Width 144"
  • Overall Beam Weight 44.15lbs

Size: 144" x 6-9/16"

  • Beam Height 6-9/16"
  • Beam Depth 2-3/4"
  • Beam Width 144"
  • Overall Beam Weight 47.40lbs
Specifications
  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 5,610lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 4,170lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 5,370lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 5,960lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 5,960lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 5,380lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 6,150lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 6,250lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty

  • Color: Orange
  • Style: Teardrop Clip-On Beam
  • Steel: Made of 16 Gauge Roll-Form Steel
  • Capacity: 7,110lbs per pair of beams

Warranty: 1-Year Manufacturers Warranty
